Scalar field sensors in 2D

This example demonstrates the application of the pyvale sensor simulation module to scalar fields in 2 spatial dimensions. An example of a scalar field sensor would be a thermocouple or resistance temperature detector measuring a temperature field.

Note that this example has minimal explanation and assumes you have reviewed the basic sensor simulation examples to understand how the underlying engine works as well as the sensor simulation workflow.

from pathlib import Path
import numpy as np
import matplotlib.pyplot as plt

# pyvale imports
import pyvale.mooseherder as mh
import pyvale.sensorsim as sens
import pyvale.dataset as dataset

1. Load physics simulation data

data_path: Path = dataset.thermal_2d_path()
sim_data: mh.SimData = mh.ExodusLoader(data_path).load_all_sim_data()
sim_data: mh.SimData = sens.scale_length_units(scale=1000.0,
                                               sim_data=sim_data,
                                               disp_keys=None)

2. Build virtual sensor array

sim_dims: dict[str,tuple[float,float]] = sens.simtools.get_sim_dims(sim_data)
sens_pos: np.ndarray = sens.gen_pos_grid_inside(num_sensors=(3,2,1),
                                                x_lims=sim_dims["x"],
                                                y_lims=sim_dims["y"],
                                                z_lims=(0.0,0.0))

sample_times: np.ndarray = np.linspace(0.0,np.max(sim_data.time),50)

sens_data = sens.SensorData(positions=sens_pos,
                            sample_times=sample_times)

descriptor = sens.SensorDescriptor(name="Temperature",
                                   symbol="T",
                                   units = r"^{\circ}C",
                                   tag = "TC")

sens_array: sens.SensorsPoint = sens.SensorFactory.scalar_point(
    sim_data,
    sens_data,
    comp_key="temperature",
    spatial_dims=sens.EDim.TWOD,
    descriptor=descriptor,
)

2.1. Add simulated measurement errors

pos_rand = sens.GenUniform(low=-1.0,high=1.0)  # units = mm
field_err_data = sens.ErrFieldData(pos_rand_xyz=(pos_rand,pos_rand,None))

error_chain: list[sens.IErrSimulator] = [
    sens.ErrSysOffset(offset=-10.0),
    sens.ErrSysGen(sens.GenUniform(low=-5.0,high=5.0)),
    sens.ErrSysField(sens_array.get_field(),field_err_data),
    sens.ErrRandGen(sens.GenNormal(std=5.0)),
    sens.ErrRandGenPercent(sens.GenUniform(low=-2.0,high=2.0)),
    sens.ErrSysDigitisation(bits_per_unit=2**16/100),
    sens.ErrSysSaturation(meas_min=0.0,meas_max=1000.0),
]

sens_array.set_error_chain(error_chain)

3. Create & run simulated experiment

measurements: np.ndarray = sens_array.sim_measurements()

truth: np.ndarray = sens_array.get_truth()
sys_errs: np.ndarray = sens_array.get_errors_systematic()
rand_errs: np.ndarray = sens_array.get_errors_random()

print(80*"-")
print("measurement = truth + sysematic error + random error")

print(f"measurements.shape = {measurements.shape} = "
        + "(n_sensors,n_field_components,n_timesteps)")
print(f"truth.shape     = {truth.shape}")
print(f"sys_errs.shape  = {sys_errs.shape}")
print(f"rand_errs.shape = {rand_errs.shape}")

sens_print: int = 0
comp_print: int = 0
time_last: int = 5
time_print = slice(measurements.shape[2]-time_last,measurements.shape[2])

print(f"\nThese are the last {time_last} virtual measurements of sensor "
        + f"{sens_print}:\n")

sens.print_measurements(sens_array,sens_print,comp_print,time_print)
print("\n"+80*"-")

4. Analyse & visualise the results

output_path = Path.cwd() / "pyvale-output"
if not output_path.is_dir():
    output_path.mkdir(parents=True, exist_ok=True)

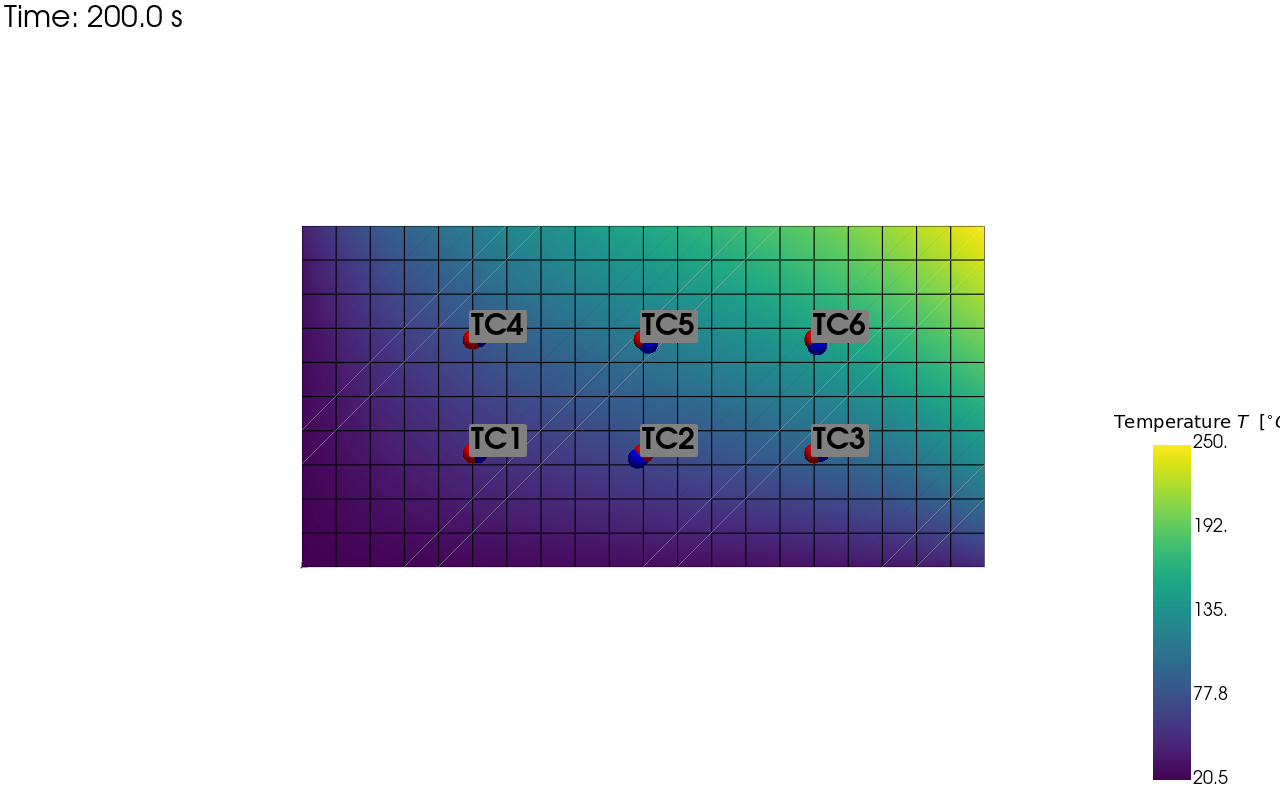

pv_plot = sens.plot_point_sensors_on_sim(sens_array,
                                         comp_key="temperature")

# Set to False to show an interactive plot instead of saving the figure
pv_plot.off_screen = True
if pv_plot.off_screen:
    pv_plot.screenshot(output_path/"ext_ex3a_locs.png")
else:
    pv_plot.show()

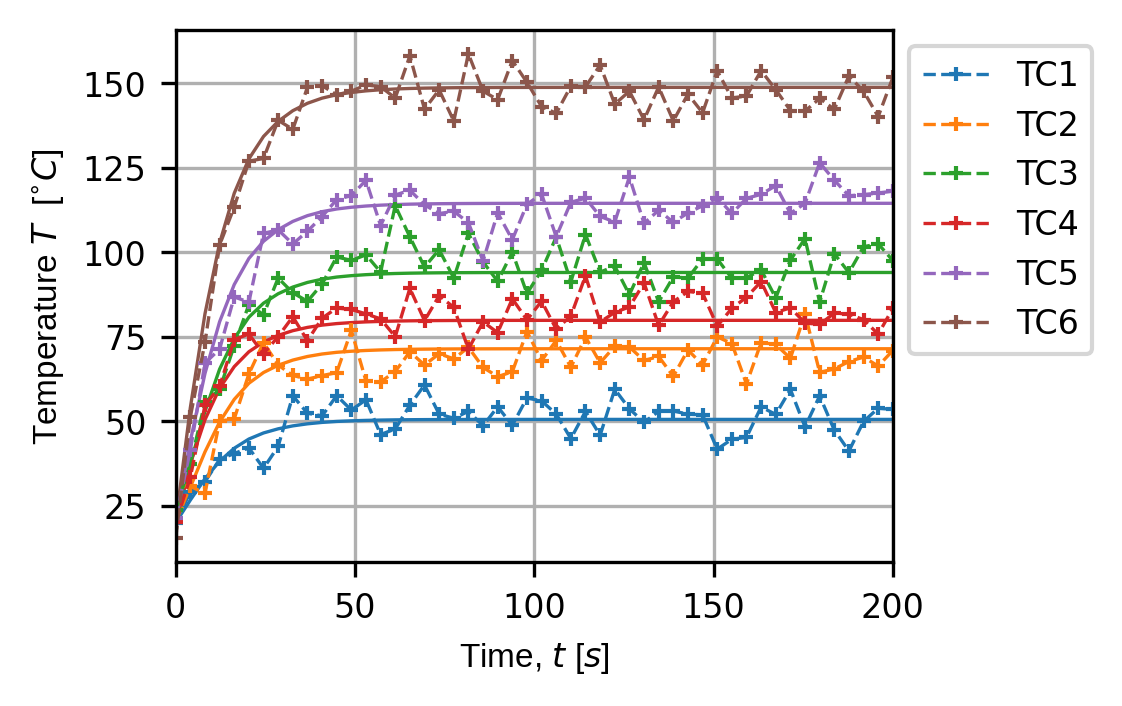

(fig,ax) = sens.plot_time_traces(sens_array,comp_key="temperature")
fig.savefig(output_path/"ext_ex3a_traces.png",dpi=300,bbox_inches="tight")

# Uncomment this to display the sensor trace plot
# plt.show()
