Riley: DIC UQ from Exodus

Here we render the same plate with a hole in tension from the last example but we load the data from an exodus file and generate the UVs using Riley’s tools.

import copy
from dataclasses import replace
from pathlib import Path

import numpy as np
import riley

import pyvale.dataio as io
from pyvale import render

1. Load Exodus data and build a textured surface mesh

exodus_sim = riley.load_exodus(
    riley.data.platehole_exodus_path(),
    disp_keys=("disp_x", "disp_y", "disp_z"),
)
block = exodus_sim.elem_blocks["connect1"]
assert exodus_sim.disp is not None
simulation = io.SimData(
    coords=exodus_sim.coords,
    connect={"connect1": block.connect},
    node_vars={
        f"disp_{axis}": values
        for axis, values in zip("xyz", exodus_sim.disp, strict=True)
    },
)

texture = riley.load_texture_mono_u8(riley.data.speckle_texture_path())

surface_mesh = render.meshes3d_from_simdata(
    simulation,
    {"connect1": riley.ConnectConvention(
        block.elem_type, riley.EConnectAxis.ROW, 1, riley.ENodeOrder.EXODUS,
    )},
    displacement_keys=("disp_x", "disp_y", "disp_z"),
)["connect1"]

uv_plane = render.UVPlane(
    normal=np.array((0.0, 0.0, -1.0), dtype=np.float64),
    origin=np.array((0.0, 0.0, 0.0), dtype=np.float64),
)
uvs = render.uv_project_planar_centered(
    surface_mesh.coords,
    (2056, 2464),
    span=0.8,
    plane=uv_plane,
)
surface_mesh.shader = riley.TextureShader(uvs=uvs, texture=texture)

# To save time we only render the first and last frame. If you want to render
# all frames comment this out.
frame_indices = render.first_last_frame_indices(
    surface_mesh.displacements.shape[0]
)
surface_mesh.displacements = render.select_frames(
    surface_mesh.displacements, frame_indices
)

2. Create and position a distorted stereo camera pair

pixels_num = (2464, 2056)
pixels_size = (3.45e-6, 3.45e-6)
focal_length = 50.0e-3
roi_centre = tuple(render.mesh_center(surface_mesh))

rot_world_0 = (0.0, 0.0, 0.0)
pos_world_0 = tuple(
    render.cam_pos_frame_points(
        surface_mesh.coords,
        pixels_num,
        pixels_size,
        focal_length,
        rot_world_0,
        fov_scale=0.65,
    )
)

rot_world_1 = (0.0, float(np.deg2rad(20.0)), 0.0)
pos_world_1 = tuple(
    render.cam_pos_frame_points(
        surface_mesh.coords,
        pixels_num,
        pixels_size,
        focal_length,
        rot_world_1,
        fov_scale=0.65,
    )
)

distortion_model = int(render.EDistortionModel.BROWN_CONRADY)

camera_0 = riley.Camera(
    pixels_num=pixels_num,
    pixels_size=pixels_size,
    pos_world=pos_world_0,
    rot_world=rot_world_0,
    roi_cent_world=roi_centre,
    focal_length=focal_length,
    sub_sample=2,
    distortion_model=distortion_model,
    distortion_k1=-0.2,
    distortion_k2=0.1,
    distortion_p1=0.0001,
    distortion_p2=-0.0001,
)

camera_1 = copy.deepcopy(camera_0)
camera_1.rot_world = rot_world_1
camera_1.pos_world = pos_world_1

cameras = [camera_0, camera_1]

3. Configure and build the renderer

config = riley.create_raster_config(
    num_frames=surface_mesh.displacements.shape[0],
    total_threads=8,
    save_strategy=riley.SaveStrategy.disk,
)

config.background_value = 128.0
config.tile_size_max = 128
config.save_scaling = riley.ScaleStrategy.none

output_dir = (
    Path.cwd() / "pyvale-output"
    / "render3d_ex1e_riley_dic_from_exodus"
)

renderer = render.Riley(config, output_dir)

4. Build the scene and render the extracted surface

result = renderer.render(
    render.Scene3D(meshes=[surface_mesh], cameras=cameras)
)

5. Save the stereo pair in Riley’s exchange format

riley.save_stereo_pair(
    str(output_dir),
    "stereo_data_opengl.csv",
    cameras[0],
    cameras[1],
)

riley.save_stereo_pair(
    str(output_dir),
    "stereo_data_opencv.csv",
    replace(cameras[0], coord_sys=riley.CameraCoordSys.opencv),
    replace(cameras[1], coord_sys=riley.CameraCoordSys.opencv),
)

print(f"Rendered Exodus driven DIC images to {output_dir}")
print(f"{result.images=}")

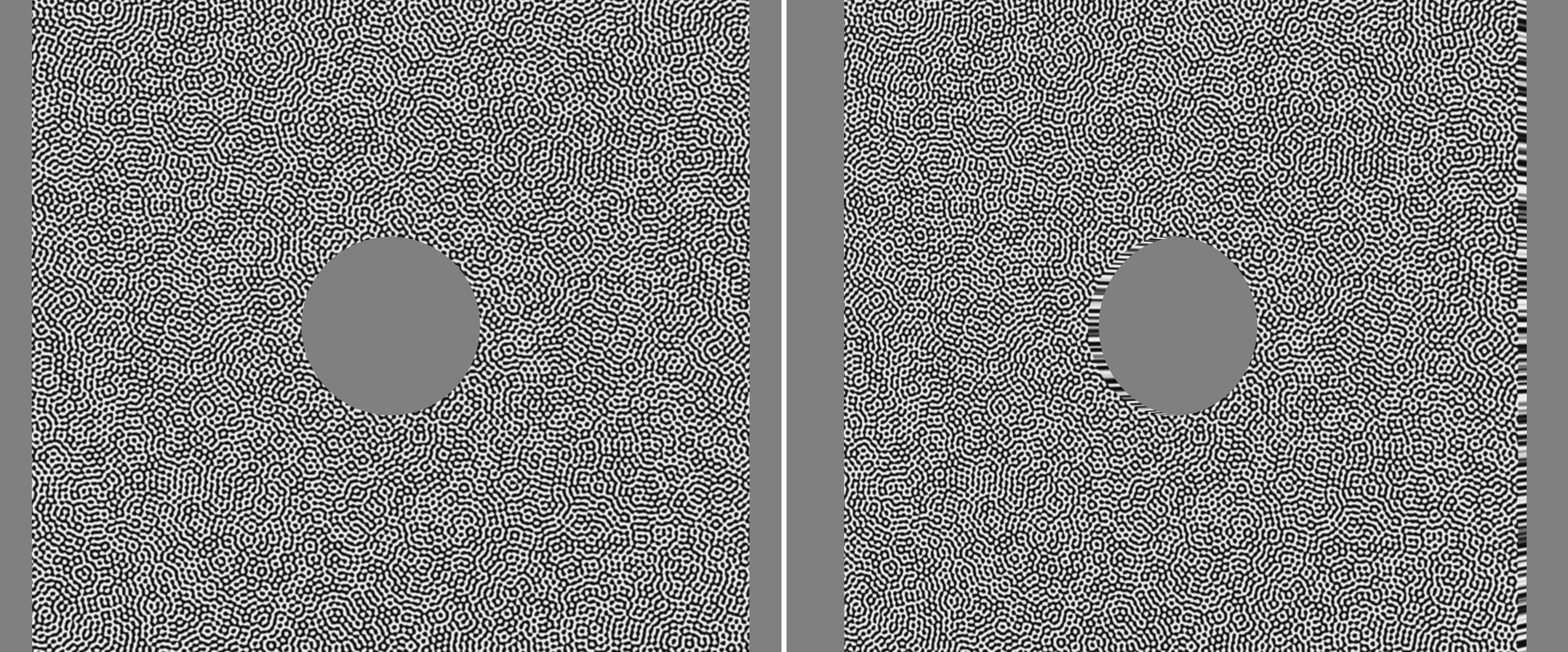

The first frame from both cameras is combined side by side below.
